Product Description

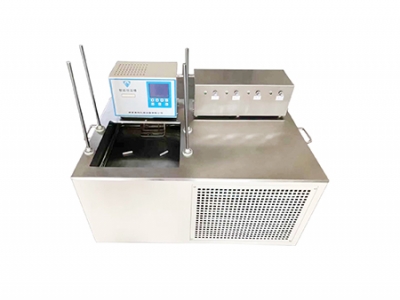

The BEDJS Series Multi-point Magnetic Stirring Thermostatic Bath is specially designed with multiple groups of magnetic stirring system, which can stir multiple groups of experimental samples at the same time to increase the working efficiency, and can also be used for comparative test. Precision control of high and low temperature synthesis, increase the uniformity of temperature in the reaction system. Multipoint magnetic stirring thermostatic bath is widely used in laboratory, chemical plant, pharmaceutical factory, hospital, biological enzyme, scientific research and other experiments and verification work.
Product Features
- Temperature control is optional from -30 to 300 ℃
- PID temperature control technology,the optional volatility is ± 0.05 ℃.
- Magnetic stirring enhances the homogeneity of the reaction system and avoids the pollution caused by electric stirring.
- Fully enclosed compressor with high speed and low noise.
- Enhance the uniformity of the reaction system and avoid contamination by electric stirring
- Big screen LCD display, easy to operate.
- Over temperature protection system with alarm and automatic cut-off.
- RS232 or RS485 communication interface is optional and can realize the remote control
Application
Multi-point magnetic stirring thermostatic bath is suitable for petroleum, chemical industry, electronic instrument, physics, chemistry, biological engineering, medicine and health, life science, light industry food, physical property test and chemical analysis and other research departments, colleges and universities, enterprise quality inspection and production departments. Such as biochemical experiments or sample tests at constant temperature.elec
Technical Specification
|
Model |
Temperature Range ℃ |
Temperature Volatility℃ |
Digital Resolution ℃ |
Beaker Capacity (ml) |
Pump Flow (L/min) |
|
BEDJS-1005-2S |
RT+10~100 |
±0.03~0.05 |
0.01 |
2x500 |
Internal Circulation |
|
BEDJS -101-2S |
RT+10~100 |
±0.03~0.05 |
0.01 |
2x1000 |
Internal Circulation |
|
BEDJS -102-2S |
RT+10~100 |
±0.03~0.05 |
0.01 |
2x2000 |
Internal Circulation |
|
BEDJS -103-2S |
RT+10~100 |
±0.03~0.05 |
0.01 |
2x3000 |
Internal Circulation |
|
BEDJS -1005-4S |
RT+10~100 |
±0.03~0.05 |
0.01 |
4x500 |
Internal Circulation |
|
BEDJS -101-4S |
RT+10~100 |
±0.03~0.05 |
0.01 |
4x1000 |
Internal Circulation |
|
BEDJS -102-4S |
RT+10~100 |
±0.03~0.05 |
0.01 |
4x2000 |
Internal Circulation |
|
BEDJS -2005-2S |
RT+10~200 |
0.1 |
0.1 |
2x500 |
Internal Circulation |
|
BEDJS -201-2S |
RT+10~200 |
0.1 |
0.1 |
2x1000 |
Internal Circulation |
|
BEDJS -202-2S |
RT+10~200 |
0.1 |
0.1 |
2x2000 |
Internal Circulation |
|
BEDJS -203-2S |
RT+10~200 |
0.1 |
0.1 |
2x3000 |
Internal Circulation |
|
BEDJS -2005-4S |
RT+10~200 |
0.1 |
0.1 |
4x500 |
Internal Circulation |
|
BEDJS -201-4S |
RT+10~200 |
0.1 |
0.1 |
4x1000 |
Internal Circulation |
|
BEDJS -202-4S |
RT+10~200 |
0.1 |
0.1 |
4x2000 |
Internal Circulation |
|
BEDJS -3005-2S |
RT+10~300 |
0.1 |
0.1 |
2x500 |
Internal Circulation |
|
BEDJS -301-2S |
RT+10~300 |
0.1 |
0.1 |
2x1000 |
Internal Circulation |
|
BEDJS -302-2S |
RT+10~300 |
0.1 |
0.1 |
2x2000 |
Internal Circulation |
|
BEDJS -303-2S |
RT+10~300 |
0.1 |
0.1 |
2x3000 |
Internal Circulation |
|
BEDJS -3005-4S |
RT+10~300 |
0.1 |
0.1 |
4x500 |
Internal Circulation |
|
BEDJS -301-4S |
RT+10~300 |
0.1 |
0.1 |
4x1000 |
Internal Circulation |
|
BEDJS -302-4S |
RT+10~300 |
0.1 |
0.1 |
4x2000 |
Internal Circulation |
|
BEDJS -05-052S |
-5~100 |
0.05 |
0.01 |
2x500 |
Internal Circulation |
|
BEDJS -05-102S |
-5~100 |
0.05 |
0.01 |
2x1000 |
Internal Circulation |
|
BEDJS -05-054S |
-5~100 |
0.05 |
0.01 |
4x500 |
Internal Circulation |
|
BEDJS -05-104S |
-5~100 |
0.05 |
0.01 |
4x1000 |
Internal Circulation |
|
BEDJS -05-204S |
-5~100 |
0.05 |
0.01 |
4x2000 |
Internal Circulation |
|
BEDJS -10-052S |
-10~100 |
0.05 |
0.01 |
2x500 |
Internal Circulation |
|
BEDJS -10-102S |
-10~100 |
0.05 |
0.01 |
2x1000 |
Internal Circulation |
|
BEDJS -10-054S |
-10~100 |
0.05 |
0.01 |
4x500 |
Internal Circulation |
|
BEDJS -10-104S |
-10~100 |
0.05 |
0.01 |
4x1000 |
Internal Circulation |
|
BEDJS -10-204S |
-10~100 |
0.05 |
0.01 |
4x2000 |
Internal Circulation |
|
BEDJS -20-052S |
-20~100 |
0.05 |
0.01 |
2x500 |
Internal Circulation |
|
BEDJS -20-102S |
-20~100 |
0.05 |
0.01 |
2x1000 |
Internal Circulation |
|
BEDJS -20-054S |
-20~100 |
0.05 |
0.01 |
4x500 |
Internal Circulation |
|
BEDJS -20-104S |
-20~100 |
0.05 |
0.01 |
4x1000 |
Internal Circulation |
|
BEDJS -20-204S |
-20~100 |
0.05 |
0.01 |
4x2000 |
Internal Circulation |
|
BEDJS -30-052S |
-30~100 |
0.05 |
0.01 |
2x500 |
Internal Circulation |
|
BEDJS -30-102S |
-30~100 |
0.05 |
0.01 |
2x1000 |
Internal Circulation |
|
BEDJS -30-104S |
-30~100 |
0.05 |
0.01 |
4x1000 |
Internal Circulation |
Service
- 12 months warranty for thermostatic instrument.
- Technical support is also available timely.
- Reply your enquiry within 24 working hours.
- OEM is available if the quantity is large.
- Package and shipping worldwide.
