Product Description

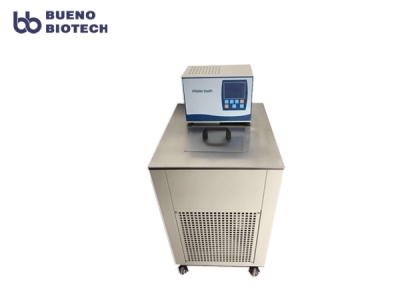

BGDH series high precision cooling bath circulator | low temperature water bath | refrigerated circulating bath | precision thermo circulator bath by PID temperature control technology can reach high precision of temperature up to 0.01 ℃. The temperature covers the ranges from -80 to 100℃. With the circulating system, the water bath can let the heated liquid flow off from the tank and offer a secondary constant-temperature field. It is widely applied in research institutes, universities, corporate quality control departments and industrial sectors like petroleum, chemical engineering, electronic instruments, physics, chemistry, bio-engineering, medicine and health, life science, light industry and food, materials testing and chemical analysis etc. It can provide the user with a working environment where cold or heat was controlled accordingly.
Product Features
BGDH series high precision cooling bath circulator | low temperature water bath | refrigerated circulating bath | precision thermo circulator bath
- PID temperature control technology,the optional volatility is ± 0.01 ℃.
- The computer system is convenient to correct the error between display temperature and actual temperature, and the resolution of temperature correction is up to 0.001 C.
- High quality resistant stainless steel liner with volume from 7.5L to 30L is available.
- Fully enclosed compressor with high speed and low noise.
- With internal and external circulation system.
- Big screen LCD display, easy to operate.
- Over temperature protection system with alarm and automatic cut-off.
- RS232 or RS485 communication interface is optional and can realize the remote control.
- The inner groove can be equipped with lifting bracket to adjust the height of special experimental samples.
Application
BGDH series high precision cooling bath circulator | low temperature water bath | refrigerated circulating bath | precision thermo circulator bath is suitable for petroleum, chemical industry, electronic instrument, physics, chemistry, biological engineering, medicine and health, life science, light industry and food, physical property testing and chemical analysis and other research departments, colleges and universities, enterprise quality inspection and production departments. For example, the constant temperature of biochemical experiment or sample test, the measurement and calibration of thermometer and platinum resistance, supporting fermentation tank, polarizing apparatus, electrophoresis apparatus, photometer, chromatographic column, rotary viscometer, rotary evaporator, rheometer and so on.
Technical Specification
|
Model |
Temperature Range ℃ |
Temperature Volatility℃ |
Digital Resolution (℃) |
Tank Size (mm3) |
Tank Lid Size (mm2) |
Pump Flow (L/min) |
|
BGDH-0506 |
-5~100 |
±0.005~0.01 |
0.001 |
250×200×150 |
180×160 |
6 |
|
BGDH-0510 |
-5~100 |
±0.005~0.01 |
0.001 |
250×200×200 |
180×160 |
6 |
|
BGDH-0515 |
-5~100 |
±0.005~0.01 |
0.001 |
300×250×200 |
235×180 |
6 |
|
BGDH-0520 |
-5~100 |
±0.005~0.01 |
0.001 |
300×250×300 |
235×180 |
6 |
|
BGDH-0530 |
-5~100 |
±0.005~0.01 |
0.001 |
400×325×230 |
310×300 |
13 |
|
BGDH-1006 |
–10~100 |
±0.005~0.01 |
0.001 |
250×200×150 |
180×160 |
6 |
|
BGDH-1010 |
–10~100 |
±0.005~0.01 |
0.001 |
250×200×200 |
180×160 |
6 |
|
BGDH-1015 |
-10~100 |
±0.005~0.01 |
0.001 |
300×250×220 |
235×180 |
6 |
|
BGDH-1020 |
-10~100 |
±0.005~0.01 |
0.001 |
300×250×300 |
235×180 |
6 |
|
BGDH-1030 |
-10~100 |
±0.005~0.01 |
0.001 |
400×325×230 |
310×300 |
13 |
|
BGDH-2006 |
-20~100 |
±0.005~0.01 |
0.001 |
250×200×150 |
180×160 |
6 |
|
BGDH-2010 |
-20~100 |
±0.005~0.01 |
0.001 |
250×200×200 |
180×160 |
6 |
|
BGDH-2015 |
-20~100 |
±0.005~0.01 |
0.001 |
300×250×200 |
235×180 |
6 |
|
BGDH-2020 |
-20~100 |
±0.005~0.01 |
0.001 |
300×250×300 |
235×180 |
6 |
|
BGDH-2030 |
-20~100 |
±0.005~0.01 |
0.001 |
400×325×230 |
310×300 |
13 |
|
BGDH-3006 |
-30~100 |
±0.005~0.01 |
0.001 |
250×200×150 |
180×160 |
6 |
|
BGDH-3010 |
-30~100 |
±0.005~0.01 |
0.001 |
250×200×200 |
180×160 |
6 |
|
BGDH-3015 |
-30~100 |
±0.005~0.01 |
0.001 |
300×250×200 |
235×180 |
6 |
|
BGDH-3020 |
-30~100 |
±0.005~0.01 |
0.001 |
300×250×300 |
235×180 |
6 |
|
BGDH-3030 |
-30~100 |
±0.005~0.01 |
0.001 |
400×325×230 |
310×300 |
13 |
|
BGDH-4006 |
-40~100 |
±0.005~0.01 |
0.001 |
250×200×150 |
180×160 |
6 |
|
BGDH -4010 |
-40~100 |
±0.005~0.01 |
0.001 |
250×200×200 |
180×160 |
6 |
|
BGDH-4015 |
-40~100 |
±0.005~0.01 |
0.001 |
300×250×200 |
235×180 |
6 |
|
BGDH-6006 |
-60~100 |
±0.005~0.02 |
0.001 |
250×200×160 |
180×150 |
Internal Circulation |
|
BGDH-6010 |
-60~100 |
±0.005~0.02 |
0.001 |
250×200×210 |
180×150 |
Internal Circulation |
|
BGDH-6015 |
-60~100 |
±0.005~0.02 |
0.001 |
300×250×210 |
235×180 |
Internal Circulation |
|
BGDH-6020 |
-60~100 |
±0.005~0.02 |
0.001 |
300×250×310 |
235×180 |
Internal Circulation |
|
BGDH-8006 |
-80~100 |
±0.005~0.02 |
0.001 |
250×200×160 |
180×150 |
Internal Circulation |
|
BGDH-8010 |
-80~100 |
±0.005~0.02 |
0.001 |
250×200×210 |
180×150 |
Internal Circulation |
|
BGDH-8015 |
-80~100 |
±0.005~0.02 |
0.001 |
300×250×210 |
235×180 |
Internal Circulation |
|
BGDH-8020 |
-80~100 |
±0.005~0.02 |
0.001 |
300×250×310 |
235×180 |
Internal Circulation |
Service
- 12 months warranty for BGDH series high precision cooling bath circulator | low temperature water bath | refrigerated circulating bath | precision thermo circulator bath
- Technical support is also available timely.
- Reply your enquiry within 24 working hours.
- OEM is available if the quantity is large.
- Package and shipping worldwide.
