Product Description

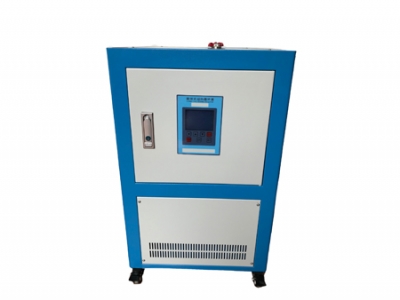

The whole liquid circulation system of the closed high temperature circulator (BESGX Series) is completely closed. There is no oil mist at high temperature and no water vapor absorption at low temperature. It is completely isolated from the air. The liquid circulation system is equipped with a safe and reliable expansion vessel. Due to the increase in temperature, the oil will expand and the excess oil will flow into the expansion vessel through the mechanical connection. The temperature is below 60℃. Suitable for glass reaction kettle, fermentation tank, chemical reaction kettle, stainless steel high pressure reaction kettle, biological pharmaceutical, biological reactor extraction laboratory equipment supporting systems such as rotary evaporator, fermentation tank, electron microscope, low temperature chemical reaction kettle, electron spectrometer, mass spectrometer, density meter, freeze drying, vacuum coating machine, reaction kettle, etc.
Product Features
1. The use of strong corrosion resistant circulating pump, low noise, large flow, high head design of the circulating pump to meet the long-distance transmission of thermal medium, improve the efficiency of the experiment.
2. Intelligent control of temperature microcomputer, simple operation, good temperature stability, compressor refrigeration system with overheating, over current multiple protection device, with temperature sensor abnormal protection function, with upper and lower temperature alarm over temperature, overtemperature can automatically cut off the load and other functions
3. Adopt the temperature control technology developed by independent special software, equipped with 2 Pt100 and all imported electronic components.
4. Using large LCD display, setting is simple and quick.
5. High power heating system with flange type, fast heating speed and reliable sealing. With liquid level observation window, convenient for customers to view the media. Equipped with special drainage valve.
6. Optional RS232 or RS485 communication interface is available to realize data transmission with PC or PLC and other upper computer for remote control
Application
The BESGX Series Closed Heating Circulator Bath is suitable for glass reaction kettle, fermentation tank, chemical reaction kettle, stainless steel high pressure reaction kettle, biological pharmaceutical, biological reactor extraction laboratory equipment supporting systems such as rotary evaporator, fermentation tank, electron microscope, low temperature chemical reaction kettle, electron spectrometer, mass spectrometer, density meter, freeze drying, vacuum coating machine, reaction kettle, etc.
Technical Specification
|
Model |
Temperature Range ℃ |
Digital Resolution ℃ |
Pump Flow (L/min) |
Pump Lift (M) |
Voltage (V/Hz) |
Heating Power (W) |
Total Power (KW) |
Overall Dimentions (mm3) |
|
BESGX-200 -3500W |
RT+30~200 |
0.1 |
35 |
30 |
380/50 |
3500 |
4.0 |
500x600x850 |
|
BESGX-200 -5000W |
RT+30~200 |
0.1 |
35 |
30 |
380/50 |
5000 |
5.5 |
500x600x850 |
|
BESGX-200 -7500W |
RT+30~200 |
0.1 |
50 |
35 |
380/50 |
7500 |
8.5 |
500x600x1000 |
|
BESGX-200 -10KW |
RT+30~200 |
0.1 |
50 |
35 |
380/50 |
10000 |
11 |
500x600x1000 |
|
BESGX-300 -3500W |
RT+30~200 |
0.1 |
20 |
15 |
380/50 |
3500 |
3.8 |
500x600x850 |
|
BESGX-300 -5000W |
RT+30~200 |
0.1 |
25 |
30 |
380/50 |
5000 |
5.8 |
500x600x850 |
|
BESGX-300 -7500W |
RT+30~200 |
0.1 |
60 |
40 |
380/50 |
7500 |
8.8 |
500x600x1000 |
|
BESGX-300 -10KW |
RT+30~200 |
0.1 |
60 |
40 |
380/50 |
10000 |
11.3 |
500x600x1000 |
