Application
The Ultrasonic Homogenizer/Sonicator/Liquid Processor is widely used in the fields of biology, microbiology, physics, zoology, agronomy, pharmacy, petroleum, etc. Also suitable for sample preparation in the chemical, medical, archaeological, address, marine and other fields.
It also can be used in Nanotechnology research such as the dispersion of nanomaterials (nanotubes, graphene, silica, etc.); emulsification, homogenization and fragmentation of nano-materials such as carbon nanotubes, graphene and other materials, homogeneous soil, rock samples, non-ferrous metals, rare earths and other particles.Lysis, disruption, leaching, extraction of DNA, protein extraction from animal and plant cells, pruning DNA/RNA, chromatin immunoprecipitation technology for cells, viruses, spores and other cell structures.
Product Description

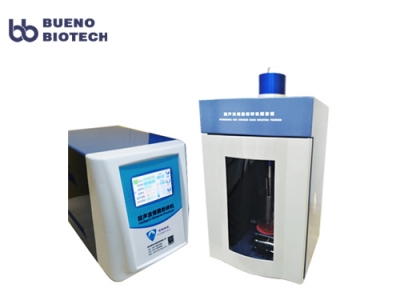

The Ultrasonic Homogenizer/Sonicator/Liquid Processor (Touch Screen Control) which used 4.3 TFT touch control and upgraded the password protection system, is a multifunctional and multipurpose instrument for ultrasonic processing by cavitation in liquid material. It can be used for a variety of plants and animals, bacteria, viruses, cells and the organization of broken, at the same time can be used to emulsify, separation, scattered, cracking, homogenization, extraction, defoaming, cleaning, nanometer material preparation, graphene dispersion and chemical reactions, etc.
Product Features
- Large TFT screen Display, Touch control for new version of Ultrasonic Homogenizer/Sonicator/Liquid Processor
- Login Password Protection System for data security
- 20 groups of experimental data can be set and stored, safe and convenient.
- The ultrasonic power can be adjusted continuously, and the best experimental conditions can be explored.
- The program has over-temperature/delay/fault protection settings and alarm system,which can protect the test samples to the maximum extent.
- High and Low temperature bath is optional which can control the temperature between -40 to 200℃
- RS232 Interface is optional, which can support the data transmission between the PC and PLC to realize the remote control.
- We provide the Sound-proof Chamberfor standard configuration with perfect transportation.
Technical Specification
|
Model |
BEM-250A |
|
Frequency |
20-25 |
|
（KHz） |
|
|
Power(Watt) |
0-250 |
|
Processing Capacity |
0.1-250 |
|
（ml） |
|
|
Input &Display（4.3in TFT） |
Touch Control |
|
Login Password |
Yes |
|
Standard Probe（mm） |
Φ6 |
|
Optional Probes (mm） |
Φ2、3、8 |
|
Sample Temperature Protection（℃） |
0-100 |
|
Security System |
Self-diagnosis function, automatic error correction, overload, overtemperature protection ,etc. |
Probe Options
|
Model |
Inch |
Frequency |
Power Range |
Crushing Capacity |
|
Φ2 |
1/12″ |
20-25KHz |
min-150W |
0.2-5ml |
|
Φ3 |
1/8″ |
20-25KHz |
min-250W |
3-10ml |
|
Φ6 |
1/4″ |
20-25KHz |
20-400W |
10-100ml |
|
Φ10 |
5/12″ |
20-25KHz |
100-600W |
30-300ml |
|
Φ12 |
1/2″ |
20-25KHz |
200-900W |
50-500ml |
|
Φ15 |
5/8″ |
20-25KHz |
300-1000W |
100-600ml |
|
Φ20 |
4/5″ |
19.5-20.5KHz |
400-1100W |
100-1000ml |
|
Φ22 |
5/6″ |
19.5-20.5KHz |
400-1100W |
200-1000ml |
|
Φ25 |
1″ |
19.5-20.5KHz |
800-1500W |
500-1200ml |
