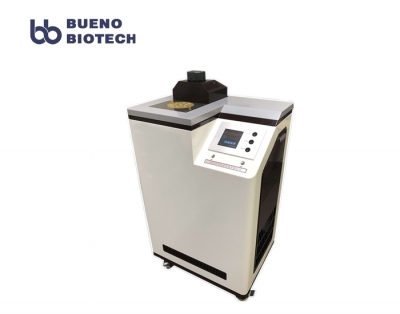

Product Description
BEHTS series calibration bath is a high-precision heating verification device with high temperature control precision and good temperature field uniformity. BEHTS-300b automatic oil pump system with oil tank in constant temperature tank for high temperature verification, which can adjust oil temperature in the tank at will, is an environment-friendly product with more convenient operation and higher work efficiency. The cooling system of BETHS-300c's own compressor can turn on the high-temperature direct drop function of the compressor with one key throughout the whole process, so that you can return to test without worry. Used for calibration of standard mercury thermometers, beckman thermometers and industrial platinum resistance in metrology department.
Product Features
- Temperature control system adopts PID temperature control technology, precision can reach 0.01 ℃.
- Model B has the function of automatic oil transfer, no manual oil, oil temperature can be adjusted by mixing
- Type C can turn on the compressor's high-temperature droop function with one key, so that you don't have to wait for the return test.
- RS232 or RS485 communication interface can be optional to realize data transmission with PC or PLC, remote control.
- Standard calibrated cartridge for thermometer, platinum resistance, thermocouple, etc.
- The refrigeration system has the protection of over heat and over current, the control system has the alarm of over temperature, the upper and lower limit of over temperature alarm temperature can be set, and the load can be cut off automatically.
Application
Calibration heating bath is suitable for measuring, biochemical, petroleum, meteorology, energy, environmental protection, medicine and other departments and manufacturers of thermometers, temperature controllers, temperature sensors and other manufacturers for physical parameters testing and calibration. It can also provide thermostatic source for other experimental research work. Such as: grade I and ii standard mercury thermometers, beckman thermometers, industrial platinum thermal resistance, standard copper-constantan thermocouple verification, etc.
Technical Specification
|
Model |
BEHTS-95 |
BEHTS-300A |
BEHTS-300B |
BEHTS-300C |
|
Temperature Range（℃） |
Ambient+15～95 |
Ambient+15～300 |
Ambient+15～300 |
Ambient+15～300 |
|
Temperature fluctuation（℃） |
±0.01 |
±0.01 |
±0.01 |
±0.01 |
|
Temperature uniformity（℃） |
0.01 |
0.01 |
0.01 |
0.01 |
|
Display resolution |
0.001 |
0.001 |
0.001 |
0.001 |
|
Tank Size（mm3） |
Ф130×480 |
Ф150×480 |
Ф150×480 |
Ф150×480 |
|
Volume（L） |
18 |
23 |
23/oil tank45 |
23 |
|
Power（kw） |
1.6 |
2.8 |
3.0 |
3.5 |
|
Shape size（mm） |
750×550×1200 |
750×550×1200 |
750×550×1200 |
750×550×1200 |
|
Net Weight（kg） |
90 |
100 |
110 |
130 |
|
Power Supply (V/HZ) |
220/50 |
220/50 |
220/50 |
220/50 |
|
Medium |
5℃-95℃：soft water |
Silicone oil |
Silicone oil |
Silicone oil |
